RFB2512 Micro Blower

RFB2512

Micro Blower

Description

  • Low profile and light weight
  • High efficiency and low power
  • High static pressure and low noise
  • Self-lubricative bearing and long service life
  • IP5X dust proof and IPX7 water proof
NEW RFB2008 (725 KB)
Application
Pico projector, Micro fuel cell, Portable gas/particulate detector, Mask/Goggle/Helmet ventilation and defrosting.

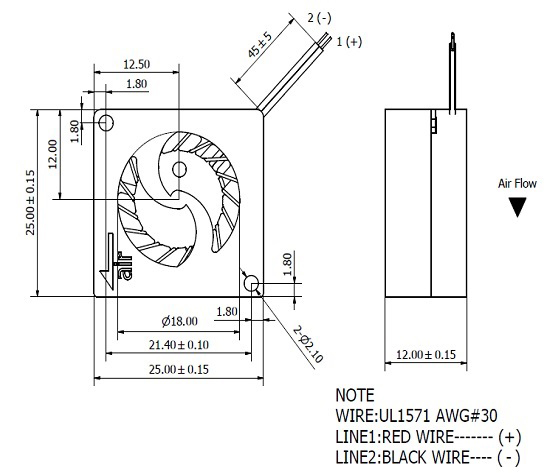

Size


Dimensions and Specifications are subject to change without notice, please refer to the actual product.
Specification
Model Number RFB2512
Product Name Micro Blower
Rated Voltage (VDC) 3.3 5.0
Operating Voltage (VDC) 2.8 ~ 3.6 4.5 ~ 5.5
Rated Current (mA) 58 (max:70) 87 (max:100)
Rotation Speed (RPM) 7,000 ± 15% 9,500 ± 15%
Air Flow (CFM) 1 1.35
Static Pressure (mmAq) 3.85 7.49
Noise (dB(A)) at 1m 18.6 27
Insulation Resistance 10MEGA. Ω Min. at 500VDC
(between frame and (+) terminal)
Dielectric Strength 5mA Max. at 500VAC、60Hz、One Minute
(between frame and (+) terminal)
Life Expectancy (hours) 25,000 at 45℃
Compliance CE, RoHS
IP Rating IP58
Weight (g) 5.39
Protection Lock rotor, Auto Restart, Polarity
  • Specifications subject to changes without notice.
  • Operating Temperature:-10℃ ~ +60℃
  • Storage Temperature:-20℃ ~ +70℃
P-Q Curve
