Micro Blower / Slim Blower
RFB3004,Slim Blower (Standard,PWM)

RFB3004 (PWM)

Slim Blower (Standard,PWM)

Description

  • High efficiency and low power
  • High air flow rate and low noise
  • Specialized bearing used for a long service life
RFB3004 Slim Blower (Upgraded) (1.5 MB)
Application
MID, UMPC, Smartbook, Handheld POS, and Small Plasma Generator
Size


Dimensions and Specifications are subject to change without notice, please refer to the actual product.
Specification
Model Number RFB3004 (PWM)
Product Name Slim Blower (Standard, PWM)
Rated Voltage (VDC) 3.3 5.0
Operating Voltage (VDC) 2.8 ~ 3.6 4.5 ~ 5.5
Rated Current (mA) 23 (max:30) 37 (max:45)
Rotation Speed (RPM) 6,500±20% 8,800 ± 20%
Air Flow (CFM) 0.62 0.81
Static Pressure (mmAq) 4.45 7.96
Noise (dB(A)) at 1m 19.2 26.5
Insulation Resistance 10MEGA. Ω Min. at 500VDC
(between frame and (+) terminal)
Dielectric Strength 5mA Max. at 500VAC、60Hz、One Minute
(between frame and (+) terminal)
Life Expectancy (hours) 25,000 at 45℃
Compliance CE, RoHS
IP Rating IP58
Weight (g) 5
Protection Lock rotor, Auto Restart
  • Specifications subject to changes without notice.
  • When using at 5V, it is recommended to add a bypass capacitor between the power supply input VCC and GND.
  • Operating Temperature:-10℃ ~ +60℃
  • Storage Temperature:-20℃ ~ +70℃

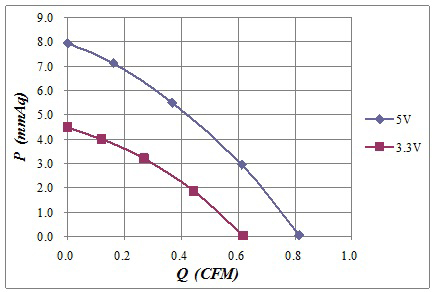

P-Q Curve
