Micro Blower / Slim Blower

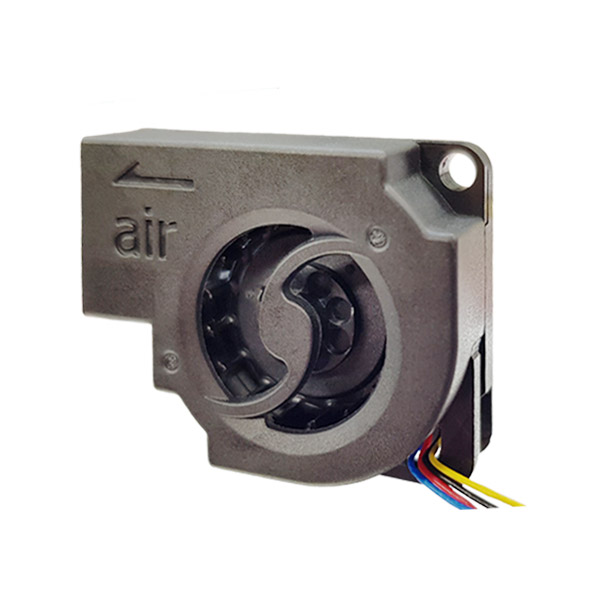

RFB2008, Micro Blower


Micro Blower (Standard)


Risun not only provides competitive prices, excellent quality but also helps customers solve technical problems, improve quality, reduce extra costs. Moreover, the slim and small design of the motors and fans assist customers to add value on their products. All in all, Risun’s customers can gain more edge to win out in the keenly competitive market.

We also design and manufacture new dc brushless motors, micro cooling fans, or micro thermal solutions according to buyer's request. Your any requirement is hearty welcome.
  • Brushless Micro Blower is available for OEM and ODM Service.
  • High efficiency and low power
  • Brushless Micro Blower with high static pressure and low noise.
  • Self-lubricative bearing used for a long service life
RFB2008 (939 KB)
Brushless Micro Blower provides a premium electronic cooling solution for video processing chipset, high-speed memory module, high-end smart phone, PDA , CCTV, mini projector, MID, Smartbook and so on; and is also applicable to defrosting and ventilation of goggles or sunglasses, and fuel delivery of small fuel cell.

Dimensions and Specifications are subject to change without notice, please refer to the actual product.
Model Number RFB2008
Product Name Micro Blower
Rated Voltage (VDC) 3.3 5.0
Operating Voltage (VDC) 2.8 ~ 3.6 4.5 ~ 5.5
Rated Current (mA) 45 (max:55) 65 (max:75)
Rotation Speed (RPM) 6,000±20% 8,000±20%
Air Flow (CFM) 0.37 0.48
Static Pressure (mmAq) 1.93 3.29
Noise (dB(A)) at 1m 14.4 18.2
Insulation Resistance 10MEGA. Ω Min. at 500VDC
(between frame and (+) terminal)
Dielectric Strength 5mA Max. at 500VAC、60Hz、One Minute
(between frame and (+) terminal)
Life Expectancy (hours) 20,000 at 45℃
Compliance CE, RoHS
IP Rating IP58
Weight (g) 3
Protection Lock rotor, Auto Restart, Polarity
  • Specifications subject to changes without notice.
  • Operating Temperature:-10℃ ~ +60℃
  • Storage Temperature:-20℃ ~ +70℃
P-Q Curve
